Tikka T1x gunsmithing guide

Safety & liability: This is general information compiled from manufacturer manuals and cited third-party sources, checked Oct 2026. It is not professional gunsmithing advice. Always unload and verify the chamber and magazine are empty before any work. Work on firearms at your own risk; if in doubt, use a qualified gunsmith. Modifications can void warranties and make a rifle unsafe. Torque values below are only those published by Tikka or the named maker; where no spec is published we say so.

Tools

• Torx drivers for the receiver screws (manual says "Torx driver"; owners report T25), 2.5 mm Allen key (trigger weight), ~3 mm flat screwdriver (bolt, Tikka T3 section), small punch for bolt pins, inch-pound torque driver. [MAN]
• For rails: T10 Torx (Area 419) and blue threadlocker (EGW). [A419] [EGW]
• Barrel work (gunsmith): barrel vise, action wrench, heat, quality bits. [AS3]

Recommended tools

Good / better / best picks for the jobs in this guide. Prices are what the linked retailer showed on Oct 10, 2026. Some makers (Wheeler, Tipton, Bore Tech) have no affiliate program we found, so those link straight to a retailer page.

1. Field strip and bolt disassembly (DIY)

1. Unload; remove magazine and bolt (press the bolt release on the side of the receiver and pull the bolt back).
2. Uncock by turning the bolt shroud counter-clockwise (cocking piece drops along the cam).
3. Push out the pin on the side of the shroud: cocking piece, spring and handle sleeve come out.
4. Push out the second pin to remove firing pin and return spring. No further disassembly is needed for cleaning.
5. Reassemble in reverse: firing pin + spring in, sleeve/cocking piece/spring/shroud in, align and push in the pins, then re-cock by turning the cocking piece ~1/8 turn into its notch. [MAN]

Tools for this step: Wheeler Engineering Professional Gunsmithing Screwdriver Set 72-pc (776737) ($71.99, The Optic Zone) View at retailer · Tipton Best Gun Vise (181181) ($164.99, Tipton) View at retailer · Grace USA Gunsmith Brass Hammer 4 oz ($17.99, Brownells) View at retailer · Grace USA Brass Punch Set (price varies, Brownells) View at retailer

2. Removing the barreled action and action-screw torque (DIY)

• Remove bolt and magazine, remove the two receiver screws, pull the trigger guard down, lift the barreled action out.
• Reinstall: fit the metallic recoil block in the stock, push the action rearward to take up slack against the lug, then torque the receiver screws to 7 Nm (62 in-lb) with a metal trigger guard, max 5 Nm (44 in-lb) with a plastic guard. [MAN]
• Owners report rifle-specific accuracy sweet spots (often 20-35 in-lb in factory stocks); chassis makers publish their own values (e.g. SCSA TSP X: 6.2-7.3 Nm). Use the chassis maker's spec in a chassis. [RFC-TQ] [SCSA] (med)

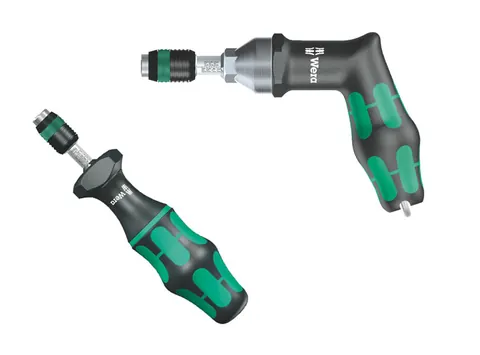

Tools for this step: Fix It Sticks All-in-One Torque Driver 15-65 in-lb (FIS-VTD; 1/4 in bits) ($64.00, Brownells) View at retailer · Wheeler Engineering F.A.T. Wrench 2023 Edition (10-65 in-lb; 10 bits) ($58.64, Brownells) View at retailer · Wheeler Engineering Digital F.A.T. Wrench (5-100 in-lb) ($79.04, Brownells) View at retailer · Wheeler Engineering Professional Gunsmithing Screwdriver Set 72-pc (776737) ($71.99, The Optic Zone) View at retailer

3. Trigger adjustment and install

• Weight (DIY, within spec): remove bolt and mag, insert a 2.5 mm Allen key through the hole in the mag well (some stocks require removing the action), clockwise = heavier. Range 11-18 N (2.5-4 lb), factory 13-15 N. Do not go below 2.5 lb (manual). [MAN]
• Replacing trigger, sear or safety: Tikka says the safety must then be readjusted and the mechanism returned to the manufacturer. Aftermarket drop-ins (TriggerTech, Timney #430) ship with their own instructions — gunsmith install recommended. [MAN] [DATA]
• Light spring kits go below the manual minimum: competition only. (high)

4. Barrel removal / swap — send to a smith

• The barrel is not designed for user swaps. Hands-on reports show three heavily torqued set screws plus adhesive bedding; Tikka's series page says "sturdy thread". Sources conflict; hands-on evidence favors set screws (med). Removal needs heat, a barrel vise and good bits; owners report seized screws and broken bits. [AR] [AS3] [SG-SER]
• No published torque for barrel retention screws, no published shank diameter for T1x (the 1.15 in figure is T3/T3x). Drop-in/prefit makers (IBI, Lothar Walther, Whidden) supply their own instructions. [DATA]
• Headspace cannot be easily adjusted on the factory barrel; owners attribute some ammo-cycling issues to it. (low) [RFC-VS]

5. Bedding and free-floating (DIY with care / smith)

• Factory synthetic stock is only partially free-floated; Hunter wood stock is free-floated. [SI]
• Lumley offers SS pillars (front 21.7 mm, rear 33 mm, 10 mm OD) and a titanium recoil lug that taps in and can be epoxy-bedded. [LUM]
• The plastic forend spacer ("shoehorn") removal: some owners see no change, others a POI shift — test. [AS1] (med)

Tools for this step: Brownells Acraglas Gel 2-Gun Bedding Kit (4 oz) ($27.99, Brownells) View at retailer · Brownells Acraglas Gel Shop Kit 16 oz ($58.99, Brownells) View at retailer · Devcon Plastic Steel Putty (A) 1 lb (10110) ($93.40, Travers Tool) View at retailer

6. Threading

• Factory muzzle is threaded 1/2x28 UNEF (US/CA) or 1/2x20 UNF (UK/AU). No re-threading needed; adapters exist. Any re-threading/re-crowning = gunsmith. [MAN]
• Suppressor must seat on the barrel shoulder, not bottom out; tighten moderately; remove after shooting. [MAN]

7. Headspace

• Not user-adjustable on the factory barrel (see §4). Aftermarket prefits are headspaced by the gunsmith/maker.

8. Scope mounting and torque

• Rails: T1x-specific only (2.508 in screw spread; handed). Area 419: 15 in-lb, T10. EGW: 20 in-lb + blue threadlocker. Rail screws reported #6-48 (hand-start; some early rifles reportedly metric). [EGW] [A419] [DATA]
• Tikka's manual: some models have a factory Picatinny rail that is permanently fixed — have a gunsmith remove it. For rings, follow the ring maker's torque (not published by Tikka). [MAN]

Tools for this step: Fix It Sticks All-in-One Torque Driver 15-65 in-lb (FIS-VTD; 1/4 in bits) ($64.00, Brownells) View at retailer · Wheeler Engineering F.A.T. Wrench 2023 Edition (10-65 in-lb; 10 bits) ($58.64, Brownells) View at retailer · Wheeler Engineering Digital F.A.T. Wrench (5-100 in-lb) ($79.04, Brownells) View at retailer · Loctite 242 Medium Strength Blue Threadlocker 0.34 fl oz ($15.99, Brownells) View at retailer · Wheeler Engineering Level-Level-Level Scope Mounting Level ($22.99, Wheeler) View at retailer · Tipton Best Gun Vise (181181) ($164.99, Tipton) View at retailer

9. Cleaning

• Clean excess oil from bolt, chamber and breech; check locking lugs are clean; strip the bolt if oil got inside (esp. cold weather). After cleaning, expect 10-20 "cold" rounds before groups settle. Magazines are not user-disassemblable on the T1x. [MAN]

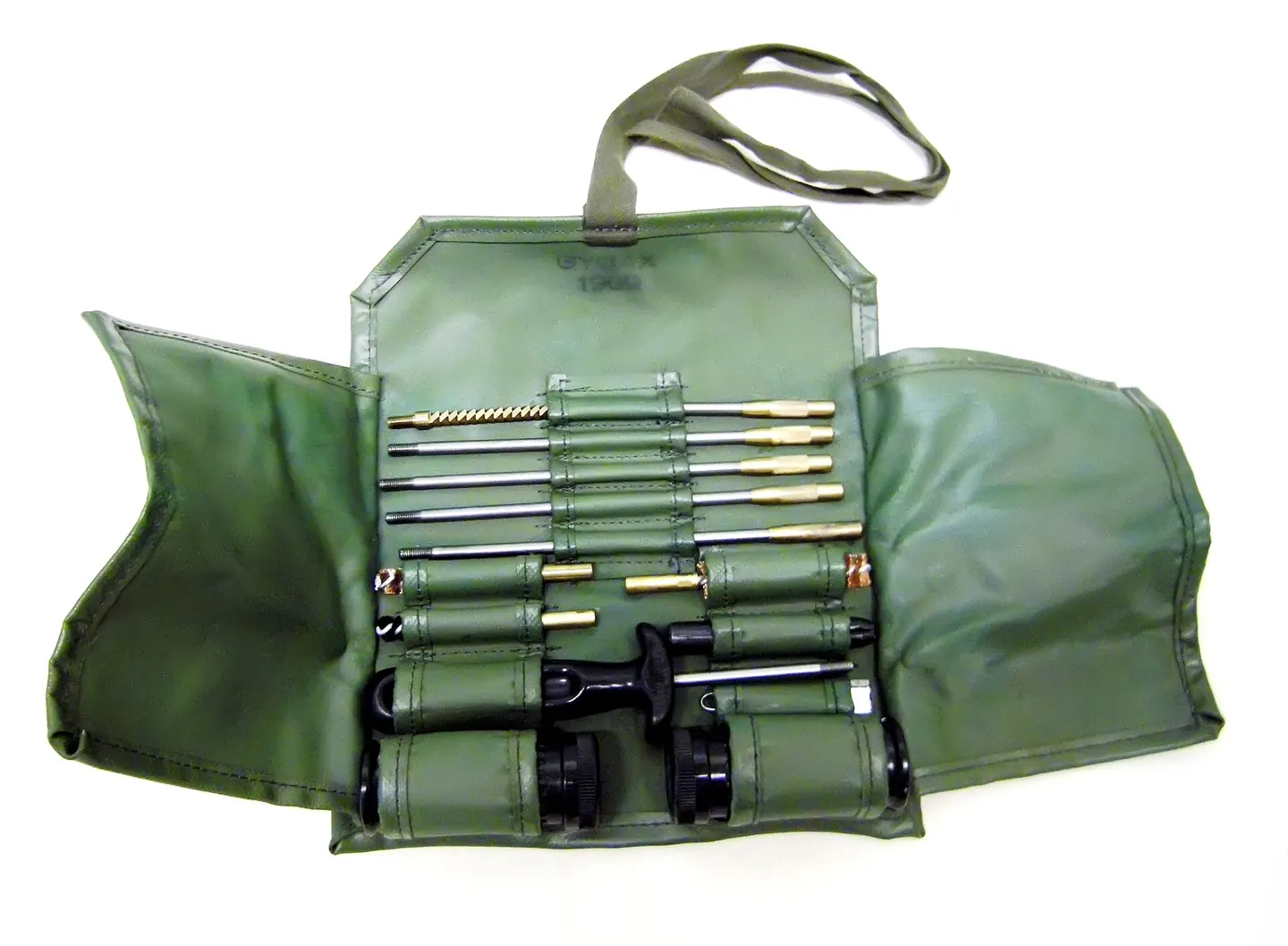

Tools for this step: Dewey 22-26 Cal 36 in Nylon-Coated Rod 8-36M (22C36) ($31.99, Brownells) View at retailer · Tipton Deluxe Carbon Fiber Cleaning Rod 22-26 Cal 36 in ($52.99, Western Sport) View at retailer · Tipton Cleaning Patches 22-270 Cal 1.13 in Square (1000) ($20.99, Tipton) View at retailer · Bore Tech Rimfire Blend 4 oz ($19.99, Bore Tech) View at retailer · Tipton Best Gun Vise (181181) ($164.99, Tipton) View at retailer

10. DIY vs gunsmith

Sources

• [MAN] https://www.gmk.co.uk/downloads/manual/Tikka_T1x_T3x_Instruction_Manual.pdf (Tikka T3x/T3/T1x manual; also Sako-hosted v5.3 https://media.sako.global/image/upload/v1691658741/Tikka_T1x_T3x_Instruction_Manual_v5.3_cjggnu.pdf)
• [AR] https://www.americanrifleman.org/content/review-tikka-t1x-mtr/
• [SI] https://www.shootingillustrated.com/content/review-tikka-t1x-mtr-rifle/
• [SG-SER] https://www.sako.global/series/tikka-t1x
• [AS3] https://forum.accurateshooter.com/threads/tikka-t1x-question.4142183/
• [AS1] https://forum.accurateshooter.com/threads/tikka-t1x-shoehorn-in-or-out.4106124/
• [EGW] https://support.egwguns.com/hc/en-us/articles/56039078646555-Tikka-T3-T3x-T1x-Scope-Mount-Picatinny-Rail-Fitment-Guide
• [A419] https://www.area419.com/product/tikka-t1x-scope-rail/
• [LUM] https://lumleyarms.us/tikka-t3-t3x-bedding-kit
• [RFC-TQ] https://www.rimfirecentral.com/threads/picked-up-a-new-t1x-action-torque.1292844/
• [SCSA] https://www.scsa-au.com/_files/ugd/fe302a_2fa89f4f1b834a70ab80d6f3079c6b27.pdf
• [RFC-VS] https://www.rimfirecentral.com/threads/overall-box-stock-is-the-tikka-t1x-22-or-the-synthetic-cz457-a-better-rifle.1334899/
• [DATA] this site's specs.md / known_issues.md
