CZ 457 gunsmithing guide

Quick answer
DIY: field strip, stock screws (3.5 Nm), trigger within factory range + safety check, factory barrel-set swaps (5.5 Nm) with a headspace check. Smith: bolt disassembly, threading, aftermarket triggers.

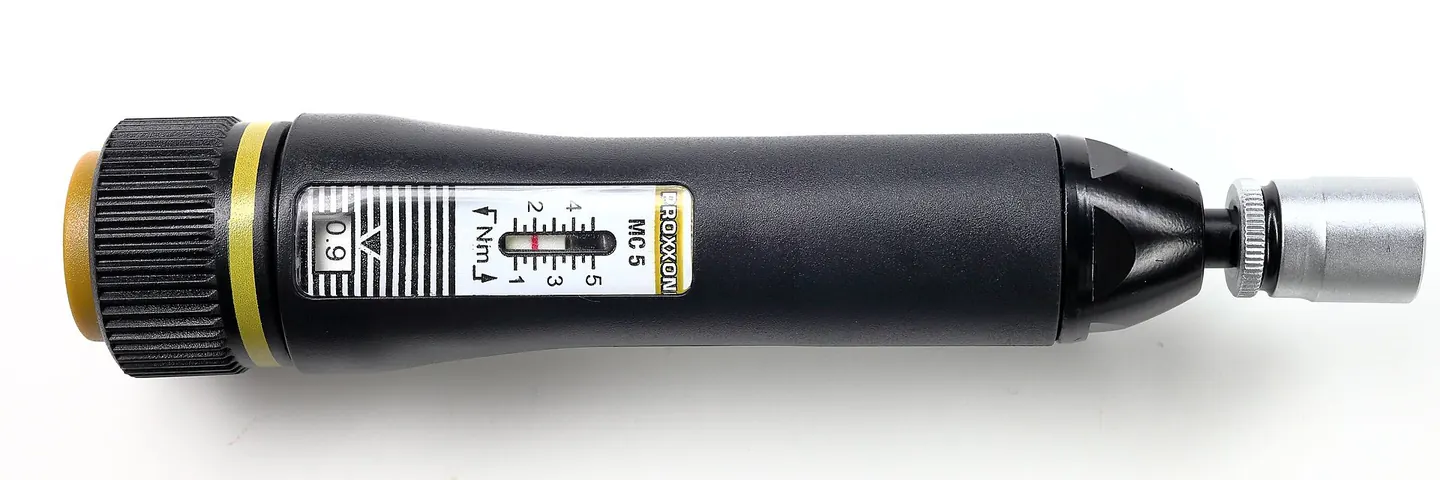

Adjustable torque screwdriver
Adjustable torque screwdriver. Photo: Ralf Pfeifer, CC BY 4.0, via Wikimedia Commons

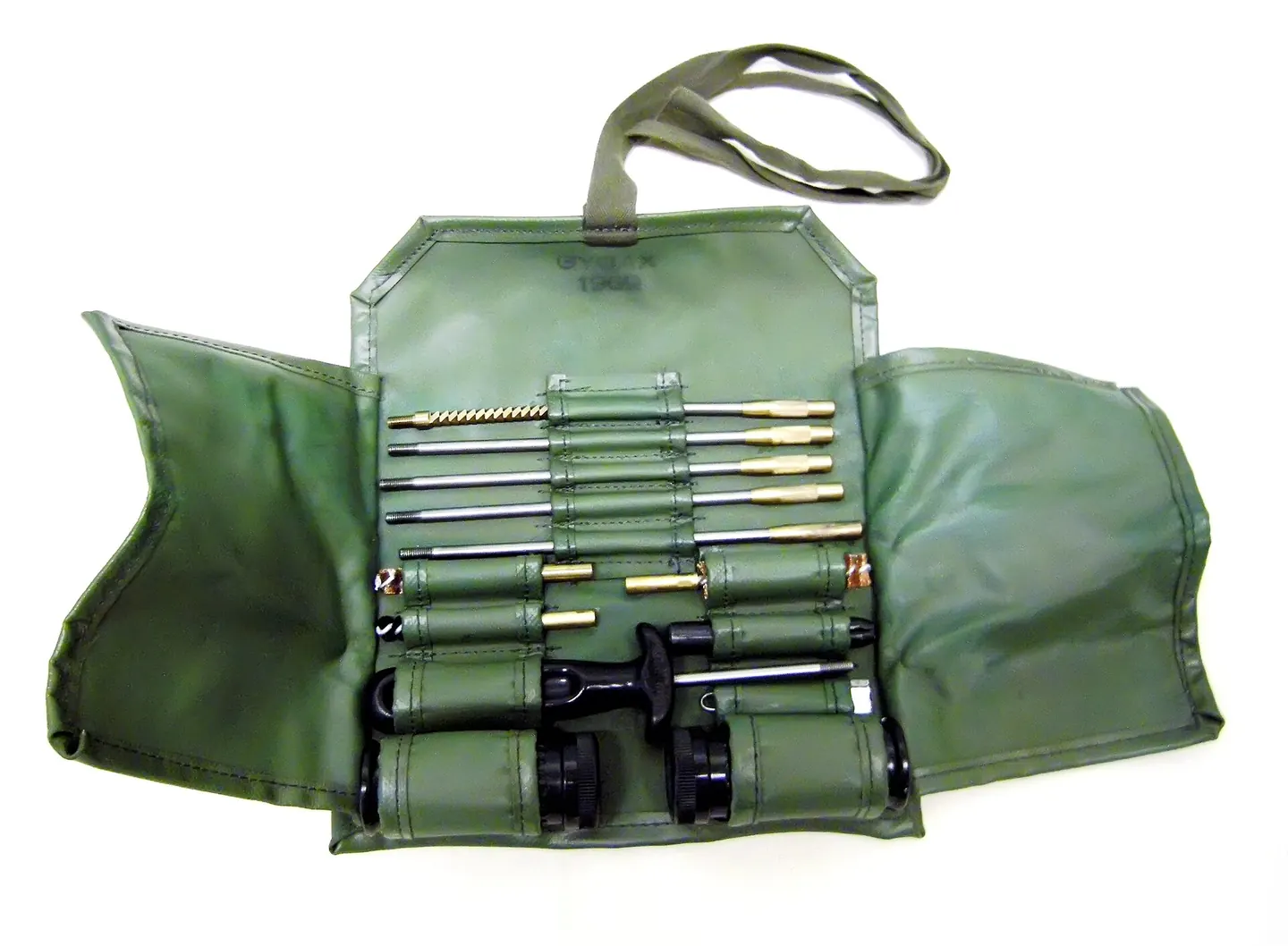

Rifle cleaning kit in a canvas pouch
A basic rifle cleaning kit. Photo: Bouterolle, CC BY-SA 3.0, via Wikimedia Commons (resized, WebP)
Read first: unload and verify before any work. This is general information from manufacturer manuals and cited sources, not professional advice; when in doubt use a qualified gunsmith. See known issues.

Safety & liability: General information compiled from CZ manuals and cited third-party sources, checked Oct 2026. Not professional gunsmithing advice. Unload and verify before any work. CZ's manual says not to strip the rifle beyond bolt removal and to entrust adjustment or repair to a competent gunsmith. Work at your own risk. We only quote torque values published by CZ or the named maker.

Tools

Good / better / best picks for the jobs in this guide. Prices are what the linked retailer showed on Oct 10, 2026. Some makers (Wheeler, Tipton, Bore Tech) have no affiliate program we found, so those link straight to a retailer page.

Product links go to retailers and may be affiliate links; we may earn a commission. Prices as of Oct 2026. Affiliate disclosure

JobGoodBetterBest
Torque driverFix It Sticks All-in-One Torque Driver 15-65 in-lb (FIS-VTD; 1/4 in bits)
$64.00 View at retailer		Wheeler Engineering F.A.T. Wrench 2023 Edition (10-65 in-lb; 10 bits)
$58.64 View at retailer		Wheeler Engineering Digital F.A.T. Wrench (5-100 in-lb)
$79.04 View at retailer
Screwdriver/bit set—Wheeler Engineering Professional Gunsmithing Screwdriver Set 72-pc (776737)
$71.99 View at retailer		—
CleaningDewey 22-26 Cal 36 in Nylon-Coated Rod 8-36M (22C36)
$31.99 View at retailer
Tipton Cleaning Patches 22-270 Cal 1.13 in Square (1000)
$20.99 View at retailer
Bore Tech Rimfire Blend 4 oz
$19.99 View at retailer		Tipton Deluxe Carbon Fiber Cleaning Rod 22-26 Cal 36 in
$52.99 View at retailer
Bore Tech Rimfire Bore Guide .22 Cal - CZ 452/453/455/457
$40.49 View at retailer		—
Bedding compoundBrownells Acraglas Gel 2-Gun Bedding Kit (4 oz)
$27.99 View at retailer		Brownells Acraglas Gel Shop Kit 16 oz
$58.99 View at retailer		Devcon Plastic Steel Putty (A) 1 lb (10110)
$93.40 View at retailer
Scope mountingWheeler Engineering Level-Level-Level Scope Mounting Level
$22.99 View at retailer		——
Thread lockerLoctite 242 Medium Strength Blue Threadlocker 0.34 fl oz
$15.99 View at retailer		——
Bench & viseGrace USA Gunsmith Brass Hammer 4 oz
$17.99 View at retailer		Grace USA Brass Punch Set
price varies View at retailer		Tipton Best Gun Vise (181181)
$164.99 View at retailer
Headspace gauge—Clymer 22 Long Rifle GO Headspace Gauge (GO22LR)
$36.00 View at retailer
Forster 22 Rimfire GO Headspace Gauge 0.043 in (HG22RIMG)
$37.75 View at retailer		—

Starter bench kit — $216.44

  • Fix It Sticks All-in-One Torque Driver 15-65 in-lb (FIS-VTD; 1/4 in bits) ($64.00, Brownells) View at retailer
  • Dewey 22-26 Cal 36 in Nylon-Coated Rod 8-36M (22C36) ($31.99, Brownells) View at retailer
  • Tipton Cleaning Patches 22-270 Cal 1.13 in Square (1000) ($20.99, Tipton) View at retailer
  • Bore Tech Rimfire Blend 4 oz ($19.99, Bore Tech) View at retailer
  • Loctite 242 Medium Strength Blue Threadlocker 0.34 fl oz ($15.99, Brownells) View at retailer
  • Wheeler Engineering Level-Level-Level Scope Mounting Level ($22.99, Wheeler) View at retailer
  • Bore Tech Rimfire Bore Guide .22 Cal - CZ 452/453/455/457 ($40.49, Creedmoor Sports) View at retailer

Sum of the listed prices (as of Oct 10, 2026; sale prices change). Covers torque, cleaning, thread locker and scope leveling. Add tools in the build planner under Tools & supplies.

1. Field strip (DIY)

  1. Remove the magazine. 2. Safety to "Off". 3. Open the bolt, press the bolt catch, pull the bolt out. CZ: no further disassembly is needed for routine maintenance; have a gunsmith clean the bolt after a large round count. [MAN]

Tools for this step: Wheeler Engineering Professional Gunsmithing Screwdriver Set 72-pc (776737) ($71.99, The Optic Zone) View at retailer · Tipton Best Gun Vise (181181) ($164.99, Tipton) View at retailer · Grace USA Gunsmith Brass Hammer 4 oz ($17.99, Brownells) View at retailer · Grace USA Brass Punch Set (price varies, Brownells) View at retailer

2. Stock removal and action-screw torque (DIY)

Tools for this step: Fix It Sticks All-in-One Torque Driver 15-65 in-lb (FIS-VTD; 1/4 in bits) ($64.00, Brownells) View at retailer · Wheeler Engineering F.A.T. Wrench 2023 Edition (10-65 in-lb; 10 bits) ($58.64, Brownells) View at retailer · Wheeler Engineering Digital F.A.T. Wrench (5-100 in-lb) ($79.04, Brownells) View at retailer · Wheeler Engineering Professional Gunsmithing Screwdriver Set 72-pc (776737) ($71.99, The Optic Zone) View at retailer

3. Trigger adjustment / install

4. Barrel swap (the 457's big feature — with caveats)

Procedure from CZ's Mini-set instructions [MINI]: 1. Remove mag and bolt. 2. Remove the 2 stock screws and trigger guard, lift off the stock. 3. Fit/remove the mag-housing insert (.22 LR only). 4. Loosen the mag-housing rear screw 1-2 turns. 5. Loosen both barrel set screws and pull the barrel. 6. Reassemble: tighten the mag-housing screw before the barrel screws. Barrel screws 5.5 Nm, stock screws 3.5 Nm. - Headspace caveat: CZ markets "user-swappable barrels" but the Mini-set sheet says each barrel "must be fitted individually by a gunsmith" with a headspace gauge (may need material removed per CIP). These conflict — headspace-check every swap. [MINI] [CZUS] - Aftermarket drop-ins: Lilja's instructions measure receiver-face-to-bolt-face depth, compute shim stack (e.g. target .043 in headspace), and specify 35-40 in-lb set-screw torque for their barrels (differs from CZ's 5.5 Nm ≈ 49 in-lb — follow the barrel maker). Lilja also notes burrs where set-screw holes break into the receiver bore can block close-fit shanks. [LILJA] - Kurt the Gunsmith measured one factory rifle at 0.046 in headspace; bolt shims tighten it. [KURT] - Barrel/stock channel: heavy barrels don't fit American/Lux/Premium/Training/Jaguar/Royal stocks. [COMPAT] - US: barrels under 16 in create an SBR (NFA). [DATA]

Tools for this step: Clymer 22 Long Rifle GO Headspace Gauge (GO22LR) ($36.00, Brownells) View at retailer · Forster 22 Rimfire GO Headspace Gauge 0.043 in (HG22RIMG) ($37.75, Mid-South Shooters Supply) View at retailer

5. Bedding / free-floating

Tools for this step: Brownells Acraglas Gel 2-Gun Bedding Kit (4 oz) ($27.99, Brownells) View at retailer · Brownells Acraglas Gel Shop Kit 16 oz ($58.99, Brownells) View at retailer · Devcon Plastic Steel Putty (A) 1 lb (10110) ($93.40, Travers Tool) View at retailer

6. Threading

7. Scope mounting

Tools for this step: Fix It Sticks All-in-One Torque Driver 15-65 in-lb (FIS-VTD; 1/4 in bits) ($64.00, Brownells) View at retailer · Wheeler Engineering F.A.T. Wrench 2023 Edition (10-65 in-lb; 10 bits) ($58.64, Brownells) View at retailer · Wheeler Engineering Digital F.A.T. Wrench (5-100 in-lb) ($79.04, Brownells) View at retailer · Loctite 242 Medium Strength Blue Threadlocker 0.34 fl oz ($15.99, Brownells) View at retailer · Wheeler Engineering Level-Level-Level Scope Mounting Level ($22.99, Wheeler) View at retailer · Tipton Best Gun Vise (181181) ($164.99, Tipton) View at retailer

8. Cleaning

Tools for this step: Dewey 22-26 Cal 36 in Nylon-Coated Rod 8-36M (22C36) ($31.99, Brownells) View at retailer · Tipton Deluxe Carbon Fiber Cleaning Rod 22-26 Cal 36 in ($52.99, Western Sport) View at retailer · Bore Tech Rimfire Bore Guide .22 Cal - CZ 452/453/455/457 ($40.49, Creedmoor Sports) View at retailer · Tipton Cleaning Patches 22-270 Cal 1.13 in Square (1000) ($20.99, Tipton) View at retailer · Bore Tech Rimfire Blend 4 oz ($19.99, Bore Tech) View at retailer · Tipton Best Gun Vise (181181) ($164.99, Tipton) View at retailer

9. DIY vs gunsmith

Job DIY?
Field strip, bore cleaning DIY
Stock screw re-torque, stock/chassis swap DIY
Trigger adjustment within factory range + safety check DIY (CZ Target manual recommends a workshop)
Aftermarket trigger install Gunsmith recommended
Factory barrel-set swap DIY possible, headspace check required (CZ says gunsmith-fit)
Shimming/headspace setting, aftermarket prefits Experienced DIY with gauges, or smith
Bolt disassembly Gunsmith (per CZ)
Threading/crowning/shortening Gunsmith
